Pharmaceutical

Counting Line

Automatic Multi-channel Counter

DELTACOUNT 300S

Output: Up to 12,000 tablets/min (depending on fill count)
Container size range: Ø 25 – 120mm, 50 – 220mm height

The DELTACOUNT300S is a 12-channel single head automatic counter designed to automatically count and fill tablets/capsules in to plastic as well as glass bottles/containers/jars. PLC and touch screen HMI control panel, tablet shutter time check, auto gating system, self-compensating vibrator control, and sequential shutter closing speed are provided for the ease of operation.

Compact design requiring minimum space
No product change parts required
All contact parts made from SS316L
Optical Sensor for reliable and accurate fill counts
Integrated conveyor and counter
Tool-less changeover for all contact parts
Stainless steel hopper, easy to remove for cleaning
Automatic gating system
Operator user-friendly HMI control panel
21 CFR part 11 compliance (optional)
Camera Vision System to detect cross contamination (optional)
cGMP and CE compliant

Automatic Multi-channel Twin-deck Counter

SIGMACOUNT 310D

Output: Up to 12,000 tablets/min (depending on fill count)
Container size range: Ø 25 – 120mm, 50 – 220mm height

The SIGMACOUNT310D is a 12-channel twin-deck automatic counter designed to automatically count and fill tablets/capsules in to plastic as well as glass bottles/containers/jars. The machine features PLC and touch screen HMI control panel, tablet shutter time check, auto gating system, self-compensating vibrator control, and sequential shutter closing speed are provided for the ease of operation. The SIGMACOUNT310D is fully cGMP and CE compliant.

Compact design requiring minimum space
No product change parts required
All contact parts made from SS316L
Optical Sensor for reliable and accurate fill counts
Integrated conveyor and counter
Tool-less changeover for all contact parts
Stainless steel hopper, easy to remove for cleaning
Automatic gating system
Operator user-friendly HMI control panel
21 CFR part 11 compliance (optional)
Camera Vision System to detect cross contamination (optional)
cGMP and CE compliant

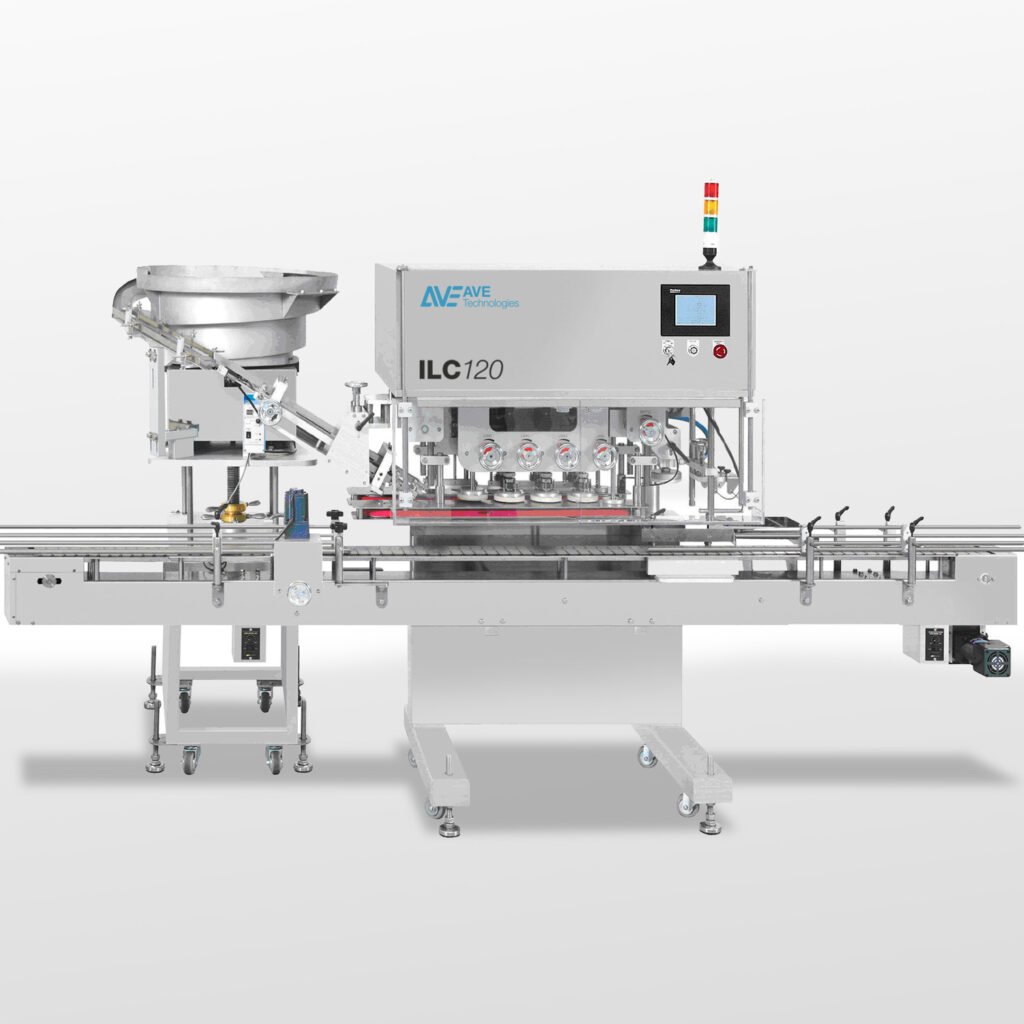

Automatic Inline Screw/Press on Capper

ILC 120

Output: Up to 120 bottles/min (depending cap type)
Container size range: Ø 25 – 100mm (dia), 50 – 200mm height

The AVE Technologies ILC120 automatic Inline Capper places and tightens caps at speeds of up to 120 bottles/min with minimum change parts. The ILC120 applies caps on the container/bottle by stripping them out of a chute in the path of the moving container and placing them over the mouth of the container.

Industrial PLC and touch screen HMI control panel
cGMp and CE compliant
Caps are gradually tightened as they pass along
4 pairs of spindles Stabilising gripper belts
Applicable for screw and press-on caps
Fully adjustable cap feeder, spindles and side belts require no change parts for various applications.
Servo controlled spindle speed adjustment
Container rejection for missing, misaligned
and skewed caps

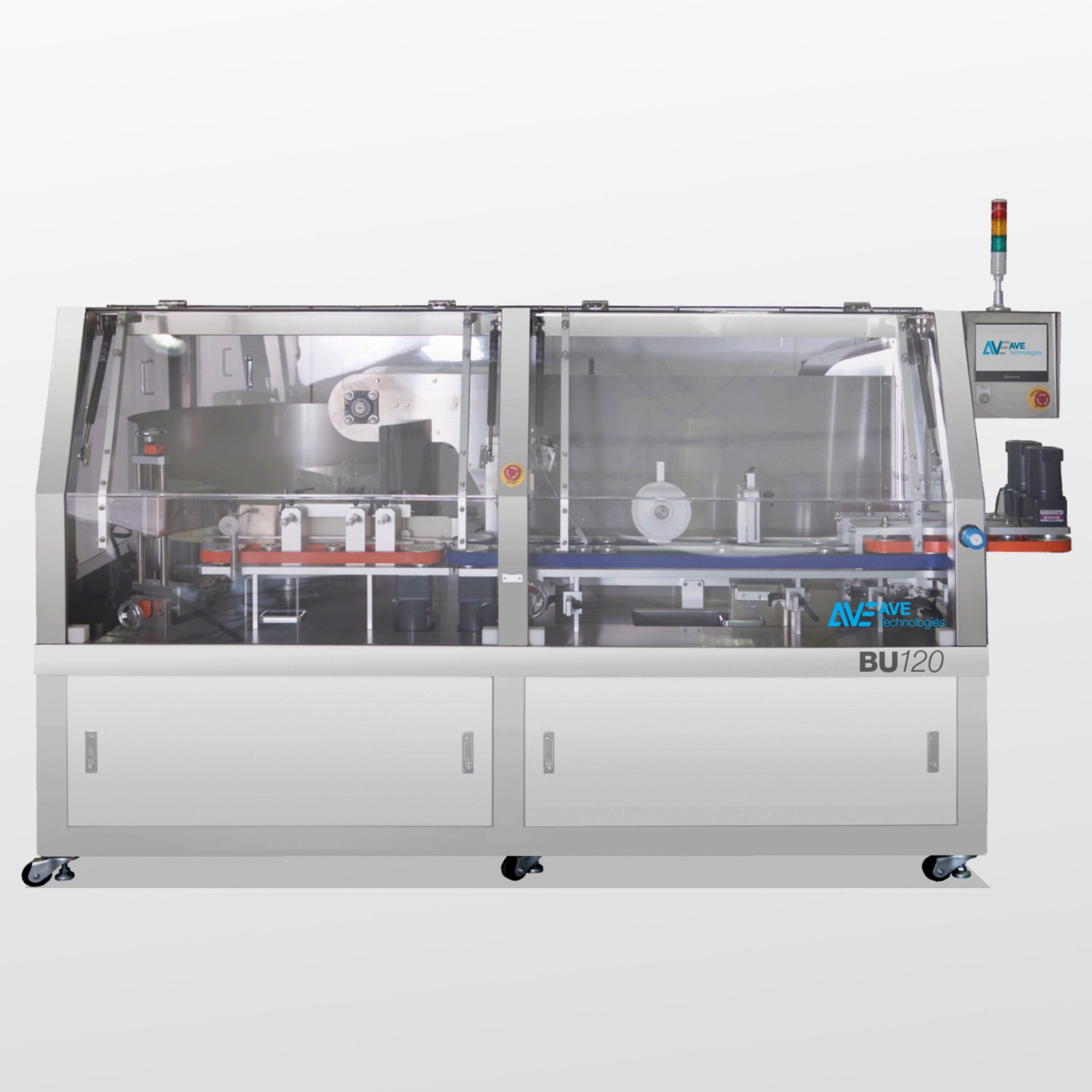

Automatic Bottle Un-scrambler

BU 120

Container size range: Ø 25 – 100mm (dia), 50 – 200mm height

The BU120 bottle unscrambler is designed to increase efficiency and productivity. The Machine automatically sorts and orients containers in an upright position and clean them before conveying into the production line.

It is capable of unscrambling and cleaning round, oval or rectangular bottles with an output of up to 120 bottles/minute. Empty bottles are loaded into an extra-large hopper then a bottle elevator feeds the empty bottles in to the sorter where they are aligned around the sorter disc. While the bottles are being transported from the sorter to the aligning unit, they are inverted and cleaned by deionizing air with vacuum. The bottles are turned into an upright position for discharge.

Industrial PLC and touch screen HMI control panel
cGMP and CE compliant
Quick and easy changeover without tools
Fully interlocked guarding enclosure
Container diameters (20 – 120mm)
Container heights (50 – 220mm)
Up to 120 containers/min (size dependant)
Bulk hopper with level sensor elevator
Adjustable side belt
Disc sorter with level sensor
0.1 Micron air filter with vacuum suction
Main frame: Stainless steel SS304
Turn table: SS304 304
Side belt: SS304 & AL6061 (Frame),
Latex & Spandex (Belt)

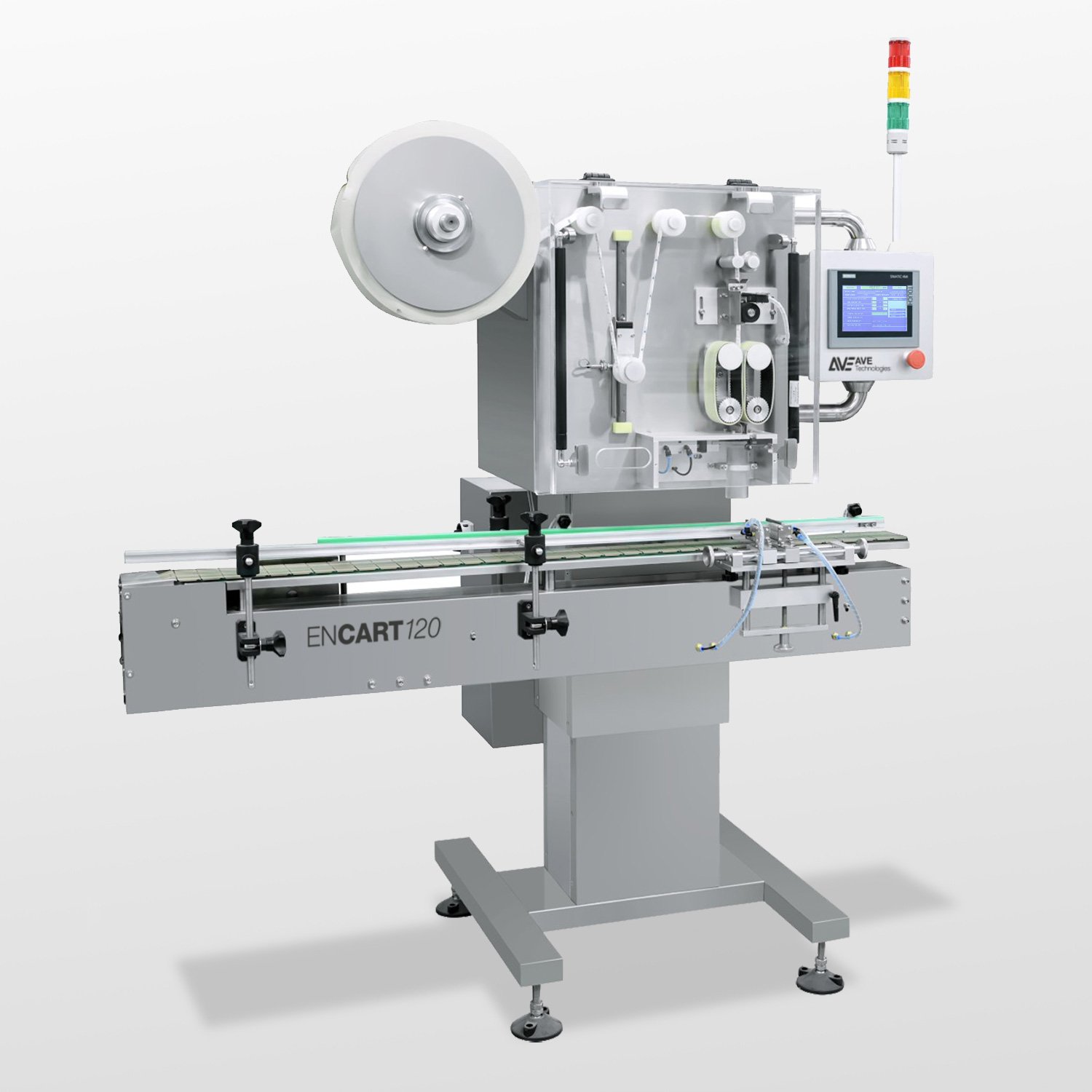

Automatic Desiccant Inserter

ENCART 120

Max Speed: 120 bottles/min

Ideal for pharmaceutical, health-care, and food industry use.
Can cut continuous desiccant (SAP) strips as per fixed length and insert into container automatically
Detect sensor – if no bottle, no action, Automatic alarm and shutdown function
Driven by double stepping motor
The machine automatically stops when the bottle supply is insufficient or bottles become blocked.
Returns to normal when the problem is resolved PLC control, touch screen
as HMI, easy to operate and maintain
Height can be adjusted to fit variable bottle size
Can be used as a stand-alone machine or inline with a counter.
