Blending System
PHARMABLEND SERIES 1000/2000
Max IBC Capacity: 800L – 1600L
The AVE PHARMABLEND Blending Systems are designed specifically for the pharmaceutical and chemical industries. The blenders consist of the main support frame, IBC cage, drive with brake, bin lift system and PLC control.
The material within the IBC is tumbled on an eccentric axis. This method requires no ‘clean down’ between batches and ensures complete batch integrity.
The IBC blender is loaded into the blending cage where it is clamped into position using a lead screw mechanism with pressure sensor to ensure the IBC is in the locked position prior to the blending cycle starting. The PLC control system includes a safety relay with optional light curtain guard, depending upon the installation required.
The blending cycle controls the rotation speed and blending time, at the end of the cycle the IBC automatically stops in the upright position and is lowered ready for removal.
- Blending cage in SS304 stainless steel, clean welded construction

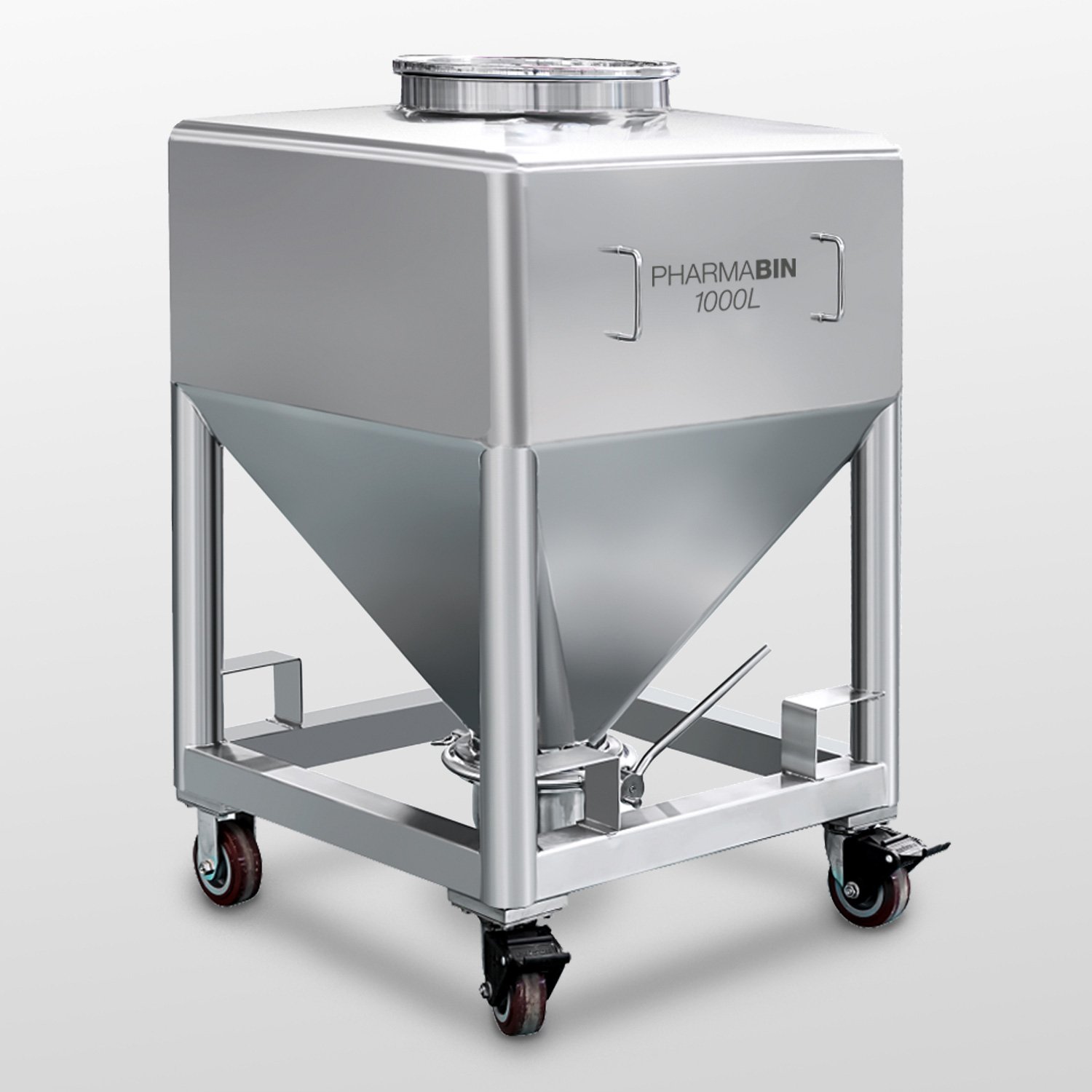

- Designed to suit Gallay type IBCs up to 2,000 litre capacity
- Lead screw clamping system with pressure sensors and safety interlocks
- Siemens S7 PLC & MHI
- Programmable blending cycle
- CE marked
